FC-8832A 32 Floors Elevator Access Control Board
FC-8832 series elevator access control board, also known as multi-purpose intelligent elevator access control board, is widely used in elevator card reading management, storage cabinet management, community mailbox management, army firearms management, funeral urn management, etc., support TCP /IP and RS485 dual communication mode.

The FC-8832 series elevator access control board adopts a large-capacity Flash memory chip, which can support 26,000 card information, 80,000 card swiping records, and 20,000 other event records, it supports 32 inputs and 32 outputs.

Product Introduction

Elevator Control Board

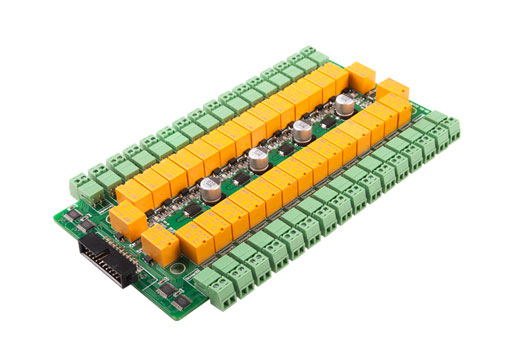

FC-8832 Elevator Control Board


FC-8832 series elevator access control board, also known as multi-purpose intelligent controller, is widely used in elevator card reading management, storage cabinet management, community mailbox management, army firearms management, funeral urn management, etc., supports TCP/IP With RS485 dual communication mode, the RS485 communication distance can reach 1200 meters, one bus can connect 255 devices, and it can also be installed in the same system with other one card pass devices for centralized management.

Elevator access control adopts large-capacity Flash memory chip, which can support 26,000 card information, 80,000 card swiping records, and 20,000 other event records. Support 32 inputs, 32 outputs, can connect 32 groups of input signals and control 32-story elevators (or cabinet locks) through the extended port, each motherboard can connect 1 group of extended boards, up to 64 outputs, and can control 64 floors. And each input can be defined as door sensor or button input. The main board provides a set of fire alarm inputs. The output can be defined as normally open or normally closed. Up to 64 groups of door time periods can be set, and multiple door opening methods can be set respectively, such as card, card + password, password, multi-card, first card opening, etc. Support the alarm output of multiple alarm events, such as invalid card, invalid time, duress alarm, etc. Support remote operation switch. Support real-time status display of electronic map. Support 2 Wiegand card reader interfaces, automatically adapt to Wiegand26 and 34 protocols.


System functions :

FC-8832 series elevator access control boards support (standard function): offline operation, card reading to open the door, password to open the door, time control password is valid, card reading password to open the door, time control card reading password is valid, manual input card number password to open the door, first card open the door, open the door with a normally open card, open the door remotely, close the door remotely, open the door regularly, open the door periodically, real-time monitoring, abnormal monitoring, duress alarm, fire linkage, illegal card reading alarm, lost card report, blacklist card reading alarm, batch upload, small amount upload, keyboard operation, emergency door closing, 64 groups of opening hours, holidays, etc.

FC-8832 series elevator access control boards support (professional function): card return, record repair, anti-detection lock, card reading verification, Mifare card writing data issuing, main board buzzer switch, telephone connection notification after alarm, device running days, remote hardware program upgrade, etc.

FC-8832 series elevator access control boards support (new function): In addition to providing the above functions, we have also added new technologies to the FC-8832 series elevator access control boards that are not or rarely available in other similar products on the market: such as card reader circuit abnormality detection and prompt, voice prompt guidance, system ring mirror temperature monitoring, input power stability monitoring, product trial period, advance notification of card expiration, smart clock error self-correction every day, exit switch is controlled by time period, anti-theft alarm host function, card reading interval setting, door sensor alarm time period management, communication encryption data, new functions such as card validity times, self-expanding capacity, and Weigand keyboard issuance.

Product Parameters

Offline Use: Support

Device Color: Green

Working Humidity: 10-90%

Working Temperature: -10℃ to +65℃

Punch Period: 64 hours

Working Current: 3A (not including card reader)

Working Voltage: DC10.8-14V, standard 12V

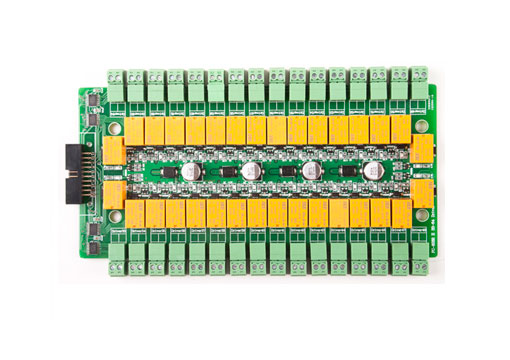

Extended Board: Extendable to 64 floors

Validity Period: One day to 100 years can be setting

Working Mode: Elevator access, lockers access management

Recognition Type: ID card, Mifare Card, Fingerprint, Card, Password

Drive Current: <Each group 1A >Following the dry battery contact(NO, NC software adjustable)

Identification Way: Card, Card + Password, Password, double card identification, first card unlock.

Data Capacity: 100,000

Card Capacity: 26,000

Shell Material: Iron and spray

Transfer Methods: Real-time, non-real-time

Networking: RS485 or TCP/IP

Networking Equipment: 127, RS485 way

Communication Distance: 1200m, RS485 way

Data Retention: 10 year/Power off status can be keep about 10 years

Transmission Frequency: 19200 baud、19200 8.1.n

Iron Box Size: 380Lmm, 280Wmm, 80Hmm

Board Size: 264Lmm, 151Wmm, 13.6Hmm

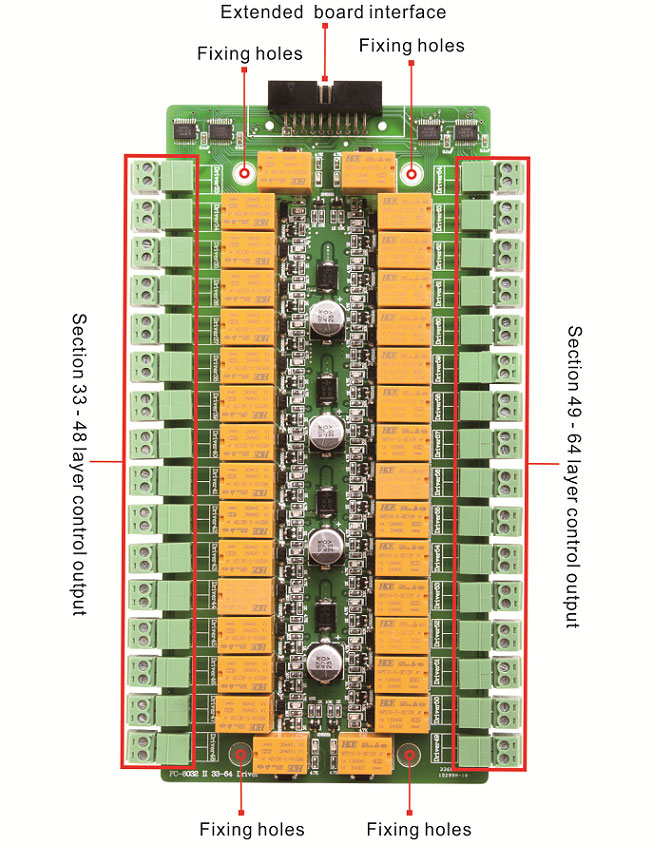

Extended board size: 216mm, 124mm, 13.6mm

Wiring Diagram:

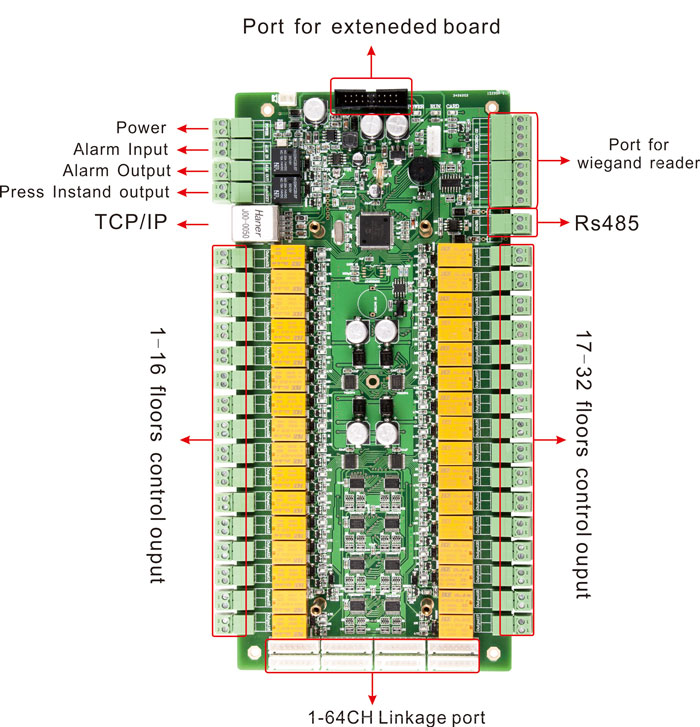

Elevator Control Board Wiring Diagram

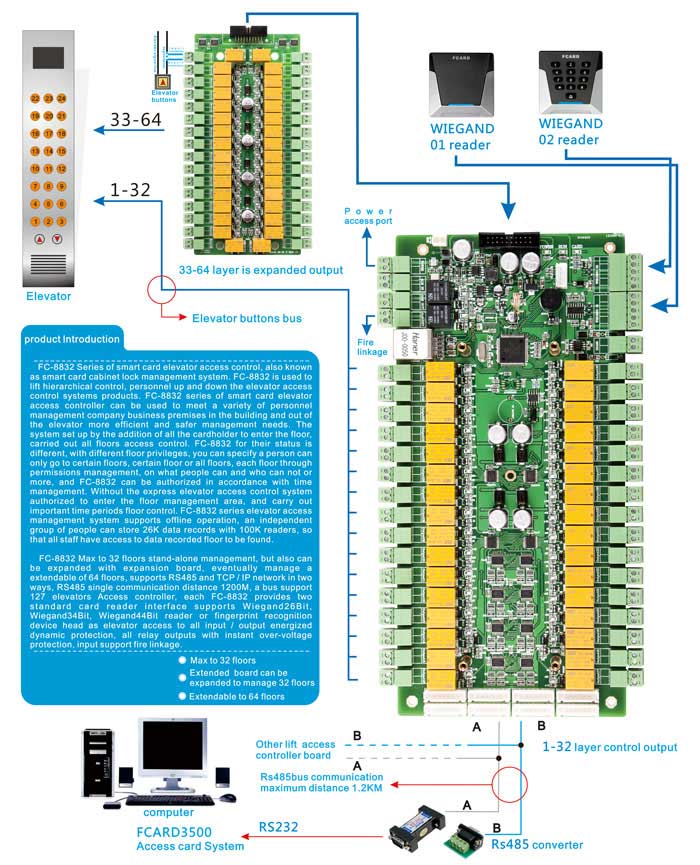

Elevator Control Board Wiring DiagramElevator Control Board Wiring Diagram

Structure Diagram:

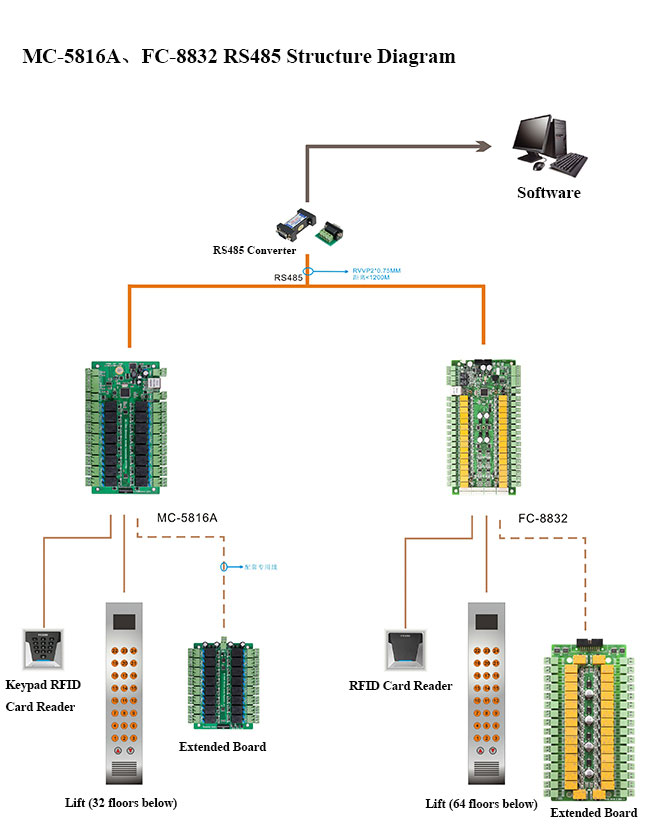

Elevator Control Board Structure Diagram


Advantages:

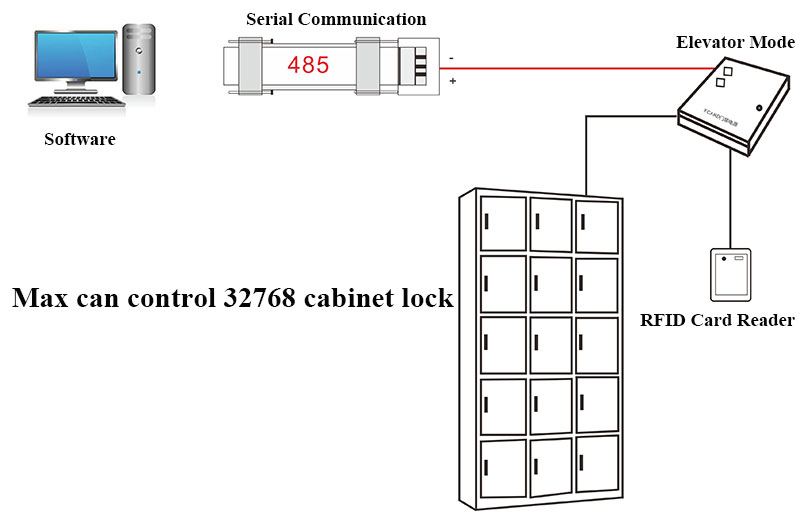

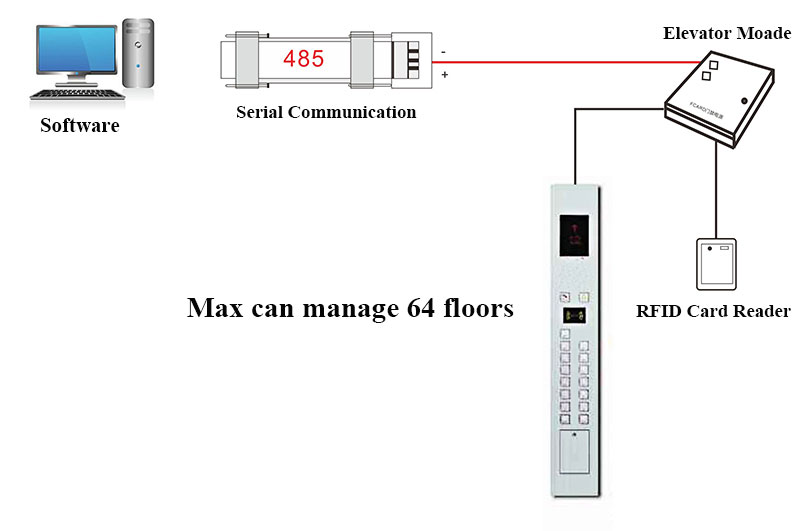

Can use in Lift/Cabinet locks, lift mode: max 64 floors management; Cabinet locks: max 32768 locks management.

Elevator Control Board Support large capacity, real-time communication, multi floor expansion.

Support time zone control, area management, identity management.

Support new FCARD3500T one card pass management system.

Supports RS485 and TCP/IP two communication interfaces.

Built in super function to meet different functional requirements.


Elevator Control:

Elevator Control Board

Cabinet Lock Control:

Elevator Control Board Cabinet Lock Control


Compatible with FCARD one card pass management system. Support: Access Control System, Offline Access Control System, Time Attendance Access Controller, Guard Tour, Consumption machine, Water Controller, Elevator Access Control Board, Parking Lot System etc unified management, to realize one card pass management system with one card and one database.
