What is the interface of LOCK2 on the FCL-988M card lock master board?

2017-02-20 20:59

Details of the problem:

Hello, I bought a FCL-988M card lock test from your company, there is an unclear interface, what is the function of the LOCK2 port? How to test it?

Expert answer:

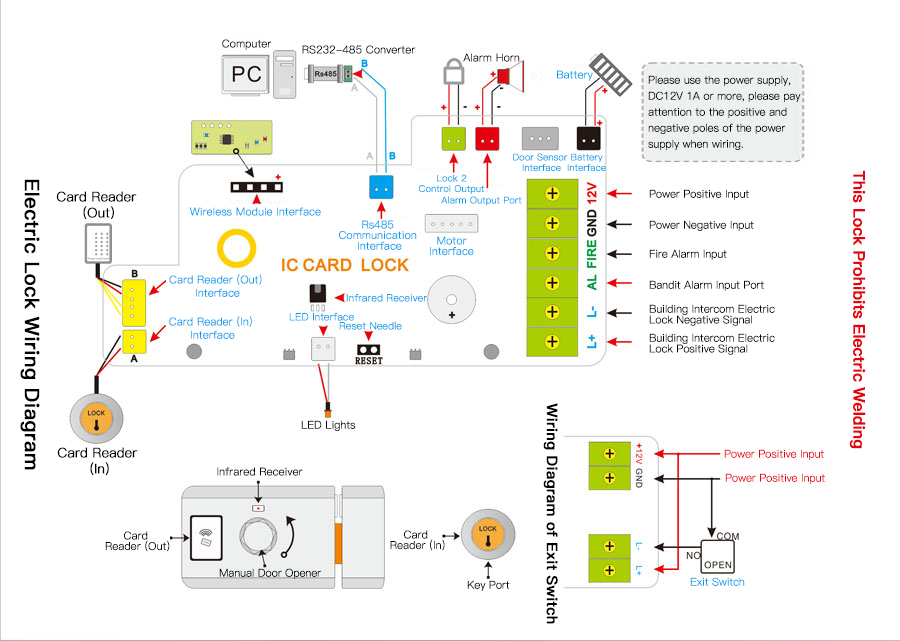

Hello! Thank you for using our company's products! The function of the LOCK2 port is to control the output of the second lock. The product wiring diagram is as follows:

electric lock 1.jpg

Can solve( 0 ) Can not be solved( 0 )
